Dwyer Model DPMF Flush Mount LCD Digital Panel Meter

Product Description

3-1/2 Digit LCD, Surface Mount

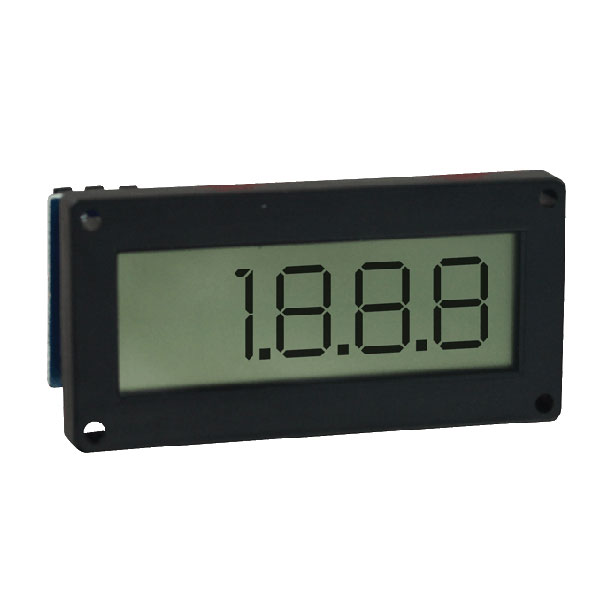

THE MODEL DPMF FLUSH MOUNT LCD DIGITAL PANEL METER offers high performance and low cost in a compact package. This meter is designed with a 3-1/2 digit high contrast LCD display. The flat pack of this panel meter allows for the instrument to be mounted to any flat surface.

Product Applications

• Display process values from various transmitters

Models

Specifications

Input:

4 to 20 mA DC.

Input Impedance:

300 Ω nominal.

Accuracy:

±(0.1% FS + 2 count).

Power Supply:

Powered by control loop.

Span and Zero:

Adjustable (±1999 counts).

Display:

3-1/2 digits, 7 segments, 0.5″ (12 mm) H.

Decimal Points:

3-position, user selectable.

Polarity:

Automatic, “-” displayed.

Operating Temperature:

32 to 122°F (0 to 50°C).

Storage Temperature:

-4 to 158°F (-20 to 70°C).

Mounting:

Surface mount.

Connection:

Screw terminals.

Conversion Rate:

3 per second.

Warm-Up:

10 minutes typical.

Weight:

1.2 oz (34.5 g).

Agency Approvals:

RoHS.
