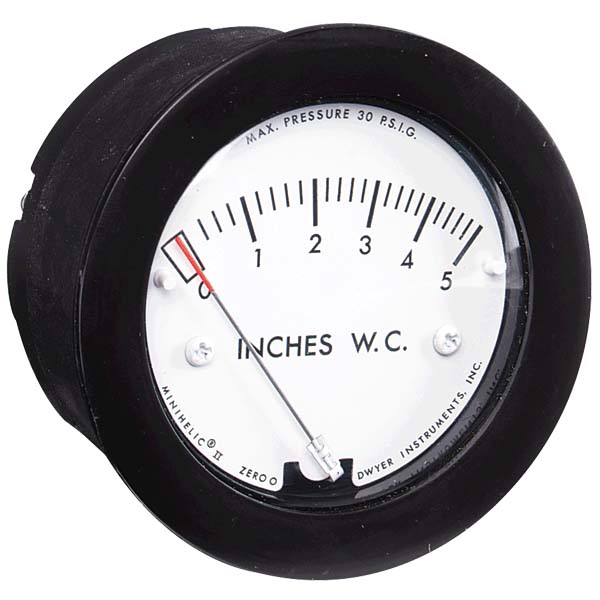

Dwyer Series 2-5000 Minihelic® II Differential Pressure Gage

$ 49.95

Clear selection

Options

Accessories

SKU: N/A Categories: ,

Product Description

Combining High Accuracy, Compactness, Dependability, and Low Cost

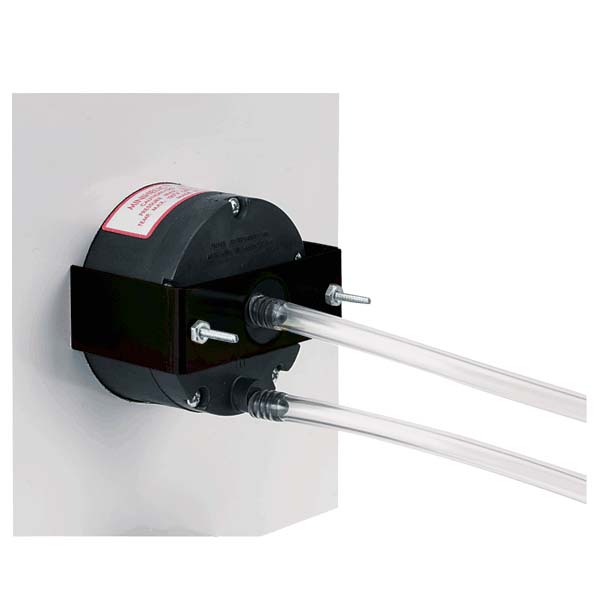

Combining clean design, small size and low cost with enough accuracy for all but the most demanding applications our Minihelic® II gage offers the latest in design features for a dial type differential pressure gage. It is our most compact gage but is easy to read and can safely operate at total pressures up to 30 psig. The Minihelic® II gage is designed for panel mounting in a single 2-5/8″ diameter hole. Standard pressure connections are barbed fittings for 3/16″ ID tubing; optional 1/8″ male NPT connections are also available. Over-pressure protection is built into the Minihelic® II gage by means of a blow-out membrane molded in conjunction with the diaphragm. Accidental over-ranging up to the rated total pressure will not damage the gage. With removable lens and rear housing, the gage may be easily serviced at minimum cost.

With the housing molded from mineral and glass filled nylon and the lens molded from acrylic, the gage will withstand rough use and exposure as well as high total pressure. The 5% accuracy and low cost of the Minihelic® II gage make it well-suited for a wide variety of OEM and user applications. OEM applications include cabinet air purging, medical respiratory therapy equipment, air samplers, laminar flow hoods, and electronic air cooling systems. As an air filter gage, the Minihelic® II gage finds many end use applications on large stationary engines, compressors, ventilators, and air handling units. The Minihelic® II gage is suitable for many of the same applications as the Magnehelic® gage where the greater accuracy, sensitivity, and higher and lower differential pressure ranges of the Magnehelic® gage are not required.

Product Applications

  • Room Positive Pressure Sensing
  • Local Indication on Filter Status
  • Face Velocity on Fume Hood
  • Duct Pressures
  • Cabinet Air-Purging
  • Medical Respiratory Equipment
  • Air Samplers
  • Electronic Air Cooling Systems
  • Laminar Flow Hoods

Models

Model Description
2-5000-0 Differential pressure gage, range 0-0.5″ w.c.
2-5000-0-NPT Differential pressure gage, range 0-0.5″ w.c., 1/8″ male NPT connection.
2-5000-100MM Differential pressure gage, range 0-100 mm w.c.
2-5000-100MM-NPT Differential pressure gage, range 0-100 mm w.c., 1/8″ male NPT connection.
2-5000-125PA Differential pressure gage, range 0-125 Pa.
2-5000-125PA-NPT Differential pressure gage, range 0-125 Pa, 1/8″ male NPT connection.
2-5000-1KPA Differential pressure gage, range 0-1 kPa.
2-5000-1KPA-NPT Differential pressure gage, range 0-1 kPa, 1/8″ male NPT connection.
2-5000-250PA Differential pressure gage, range 0-250 Pa.
2-5000-250PA-NPT Differential pressure gage, range 0-250 Pa, 1/8″ male NPT connection.
2-5000-25MM Differential pressure gage, range 0-25 mm w.c.
2-5000-25MM-NPT Differential pressure gage, range 0-25 mm w.c., 1/8″ male NPT connection.
2-5000-3KPA Differential pressure gage, range 0-3 kPa.
2-5000-3KPA-NPT Differential pressure gage, range 0-3 kPa, 1/8″ male NPT connection.
2-5000-500PA Differential pressure gage, range 0-500 Pa.
2-5000-500PA-NPT Differential pressure gage, range 0-500 Pa, 1/8″ male NPT connection.
2-5000-50MM Differential pressure gage, range 0-50 mm w.c.
2-5000-50MM-NPT Differential pressure gage, range 0-50 mm w.c., 1/8″ male NPT connection.
2-5001 Differential pressure gage, range 0-1.0″ w.c.
2-5001-NPT Differential pressure gage, range 0-1.0″ w.c., 1/8″ male NPT connection.
2-5002 Differential pressure gage, range 0-2.0″ w.c.
2-5002-NPT Differential pressure gage, range 0-2.0″ w.c., 1/8″ male NPT connection.
2-5003 Differential pressure gage, range 0-3.0″ w.c.
2-5003-NPT Differential pressure gage, range 0-3.0″ w.c., 1/8″ male NPT connection.
2-5005 Differential pressure gage, range 0-5.0″ w.c.
2-5005-NPT Differential pressure gage, range 0-5.0″ w.c., 1/8″ male NPT connection.
2-5010 Differential pressure gage, range 0-10″ w.c.
2-5010-NPT Differential pressure gage, range 0-10″ w.c., 1/8″ male NPT connection.
2-5020 Differential pressure gage, range 0-20″ w.c.
2-5020-NPT Differential pressure gage, range 0-20″ w.c., 1/8″ male NPT connection.
2-5040 Differential pressure gage, range 0-40″ w.c.
2-5040-NPT Differential pressure gage, range 0-40″ w.c., 1/8″ male NPT connection.
2-5060 Differential pressure gage, range 0-60″ w.c.
2-5060-NPT Differential pressure gage, range 0-60″ w.c., 1/8″ male NPT connection.
2-5100 Differential pressure gage, range 0-100″ w.c.
2-5100-NPT Differential pressure gage, range 0-100″ w.c., 1/8″ male NPT connection.
2-5205 Differential pressure gage, range 0-5 psi.
2-5205-NPT Differential pressure gage, range 0-5 psi, 1/8″ male NPT connection.
2-5210 Differential pressure gage, range 0-10 psi.
2-5210-NPT Differential pressure gage, range 0-10 psi, 1/8″ male NPT connection.
2-5215 Differential pressure gage, range 0-15 psi.
2-5215-NPT Differential pressure gage, range 0-15 psi, 1/8″ male NPT connection.

Specifications

Service:
Air and compatible gases.
Wetted Materials:
Consult factory.
Housing:
Glass filled nylon; acrylic lens.
Accuracy:
±5% of FS at 70°F (21.1°C).
Pressure Limits:
30 psig (2.067 bar) continuous to either pressure connection.
Temperature Limits:
20 to 120°F (-6.67 to 48.9°C).
Mounting Orientation:
Diaphragm in vertical position. Consult factory for other position orientations.
Process Connections:

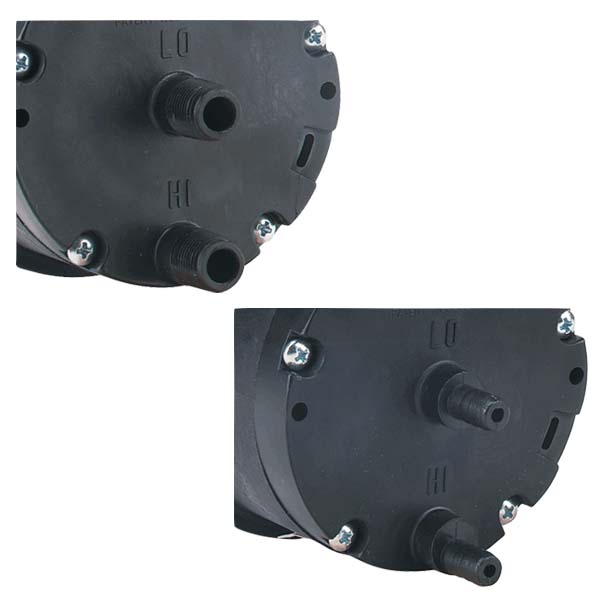

Barbed, for 3/16″ ID tubing (standard); 1/8″ male NPT (optional).
Weight:
6 oz (170.1g).
Agency Approvals:
RoHS.
CAUTION: FOR USE ONLY WITH AIR OR COMPATIBLE GASES.

Features

  • Housing is molded from strong mineral and glass filled nylon.
  • Pointer stops of molded rubber prevent pointer over-travel without
    damage.
  • Full view lens is removable and molded of tough acrylic.
  • Aluminum scale litho-printed black on white, enhances readability.
  • Red tipped aluminum pointer, rigidly mounted to helix is easy to see.
  • Wishbone assembly provides mounting for helix, helix bearings, and
    pointer shaft.
  • Jewel bearings provide virtually friction-free helix motion.
  • Helix is free to rotate in jewel bearings. It aligns with magnetic
    field of magnet to transmit pressure indications to pointer.
  • Zero adjustment screw, located behind the removable lens, eliminates
    tampering.
  • Range spring calibration clamp fixes live length of spring for proper
    gage calibration and is factory set and sealed.
  • Silicone rubber diaphragm allows accurate response to a broad range
    of temperatures and at extremely low pressure. Incorporates blow out area
    for overpressure protection.
  • Diaphragm support plates of lightweight aluminum on each side of the
    diaphragm minimize position or attitude sensitivity and help define pressure
    area.
  • Flat leaf range spring reacts to pressure on the diaphragm. Live length
    is adjustable for calibration. Small amplitude of motion minimizes inaccuracies
    and assures long life.
  • Low pressure tap connects to rear chamber.
  • Coil spring link provides a resilient connection between the diaphragm
    and the range spring.
  • Ceramic magnet mounted on a molded bracket at the end of the range
    spring rotates the helix without
    direct mechanical linkage.
  • High pressure tap connects with the front chamber through passageway
    in the plastic case and a sealing ring molded into the edge of the diaphragm.
  • Accuracy and value provides an excellent solution for OEM and user applications

Literature

Manuals

Catalog Pages

Series 2-5000 Catalog Page

Approvals

Drawings

Accessories

Model Number Description

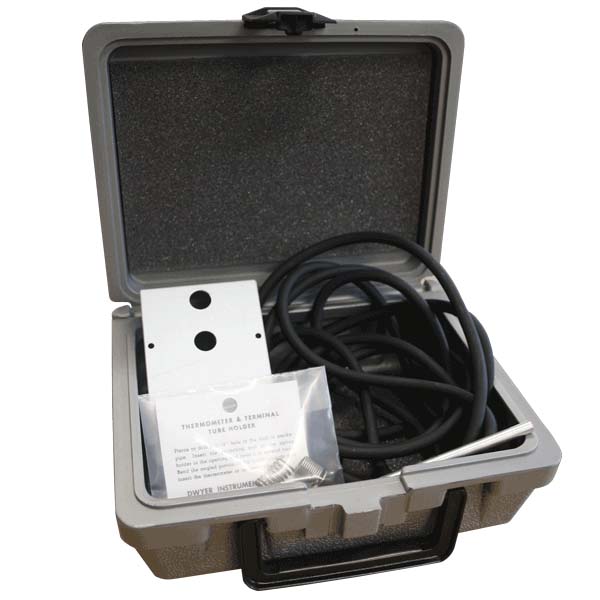

Portable kit for Series 2-5000 Minihelic® II gage. A-434 Portable kit for Series 2-5000 Minihelic® II gage.

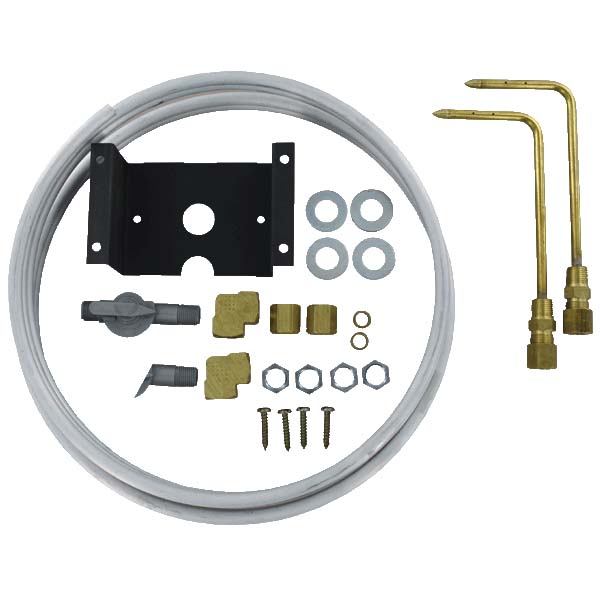

Air filter kit for Series 2-5000 Minihelic® II gage. A-609 Air filter kit for Series 2-5000 Minihelic® II gage.

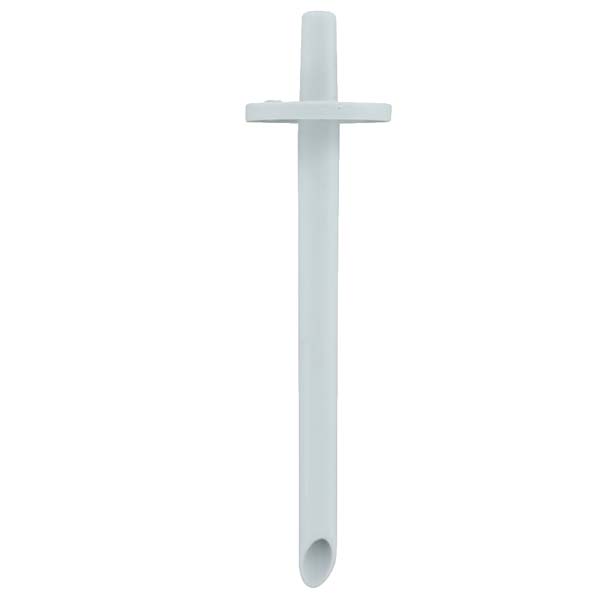

Plastic static pressure tip. A-480 Plastic static pressure tip.
Mounting bracket for the Series 2-5000 Minihelic® II Differential Pressure Gage A-497 Mounting bracket for the Series 2-5000 Minihelic® II Differential Pressure Gage
303SS static pressure tip with mounting flange, 4 A-302F-A 303SS static pressure tip with mounting flange, 4″ hook style. For 3/16″ ID rubber or plastic tubing, includes mounting screws.
4 A-489 4″ 303 SS straight static pressure tip with flange.
Stand-hang bracket, aluminum, for Minihelic® II gage. A-362 Stand-hang bracket, aluminum, for Minihelic® II gage.

Model Chart

EXAMPLE 2-5000-0 AT Series 2-5000-0-AT Minihelic® II Differential Pressure Gage, range 0-.5″ w.c., with aluminum tag.
RANGE 2-5000-0
2-5001
2-5002
2-5003
2-5005
2-5010
2-5020
2-5040
2-5060
2-5100
2-5200
2-5205
2-5210
2-5215
2-5000-25MM
2-5000-50MM
2-5000-100MM
2-5000-125PA
2-5000-250PA
2-5000-500PA
2-5000-750PA
2-5000-1KPA
2-5000-3KPA
2-5000-5KPA 		  0-.5″ w.c.
0-1″ w.c.
0-2″ w.c.
0-3″ w.c.
0-5″ w.c.
0-10″ w.c.
0-20″ w.c.
0-40″ w.c.
0-60″ w.c.
0-100″ w.c.
0-200″ w.c.
0-5 psid
0-10 psid
0-15 psid
0-25 mm w.c.
0-50 mm w.c.
0-100 mm w.c.
0-125 Pa
0-250 Pa
0-500 Pa
0-750 Pa
0-1 kPa
0-3 kPa
0-5 kPa
OPTIONS   AT
BB
NIST
NPT		 Aluminum Tag

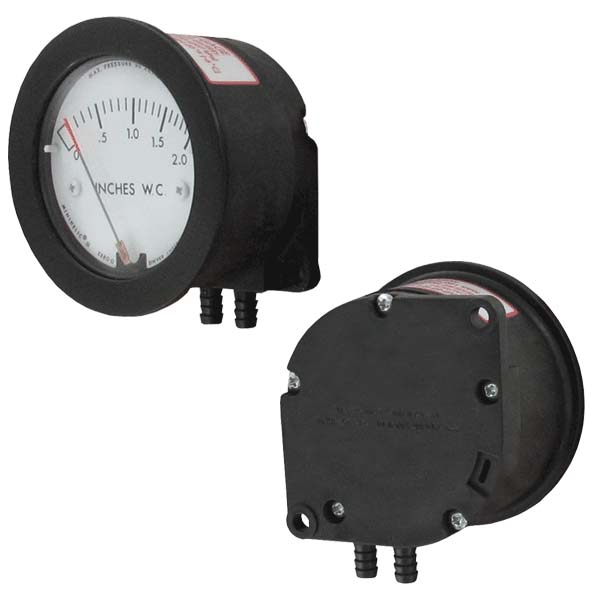

Bottom Barb Connection
NIST Certificate of Calibration
NPT Connection
