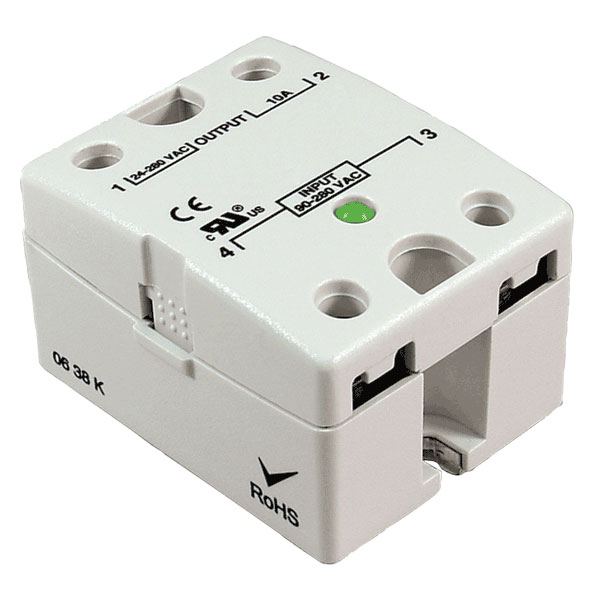

Dwyer Series 62 Hockey Puck Solid State Relay

$ 33.50–$ 36.25

Clear selection
SKU: N/A Categories: ,

Product Description

10 or 25 Amp, SPST-NO Operation

Series 62 Hockey Puck Style Solid State Relay features a terminal cover and LED status indicator. The optically coupled circuitry isolates the input terminals from the output terminals to give the relay 100% pure solid state performance.

Models

Model Description
6210AXXSZS-AC90 SSR, 10A, 90 to 280 VAC input.
6210AXXSZS-DC3 SSR, 10A, 3 to 32 VDC input.
6225AXXSZS-AC90 SSR, 25A, 90 to 280 VAC input.
6225AXXSZS-DC3 SSR, 25A, 3 to 32 VDC input.
6240AXXSZS-AC90 SSR, 40A, 90 to 280 VAC input.
6240AXXSZS-DC3 SSR, 40A, 3 to 32 VDC input.

Specifications

Operating and Load Voltage Range:
24 to 280 VAC.
Electrical Connection:
Spade lug.
Switching Operation:
SPST normally open.
Switching Type:
Zero cross.
Temperature Limits:
-40 to 176°F (-40 to 80°C).
Voltage Loss:
1.6 VAC max.
Output Leakage Current:
10 mA max.
Housing:
Polyamide 6.
Weight:
3.5 oz.
Agency Approvals:
cUR, UR, CE, RoHS.

Features

  • Hockey puck design
  • Finger-safe cover
  • LED status indicator
  • Optically coupled circuitry
