Dwyer Series 681 Sanitary Pressure Transmitter

$ 876.00

SKU: N/A Categories: Pressure, Single Pressure

Description
Models
Specifications
Features
Literature
Approvals
Drawings
Accessories

Product Description

No Liquid Fill Diaphragm, Sanitary Clamp Fitting

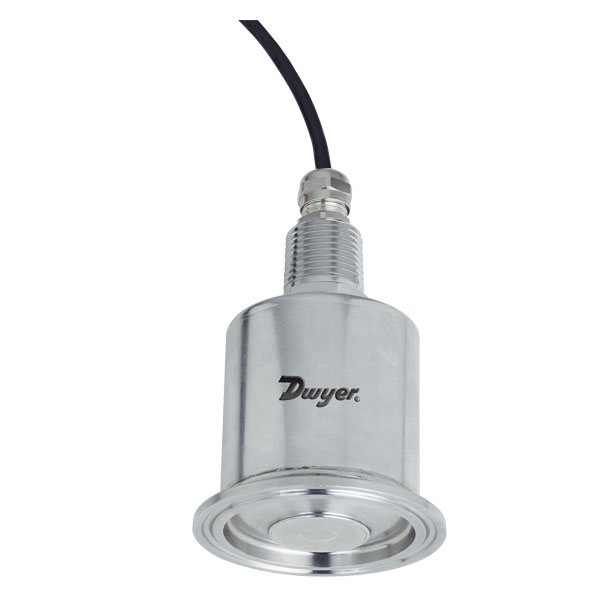

The Series 681 Sanitary Pressure Transmitter is designed to meet 3A standards for applications in food, dairy, beverage and pharmaceutical processing, liquid level control, and sanitary pipelines. The unit is fully sealed to withstand high pressure wash-down in Clean-in-Place (CIP) and Sterilize-in-Place (SIP) installations. The Series 681 is designed with a unique, no liquid fill diaphragm and a Sanitary Clamp pressure fitting for easy installation with negligible clamping effect. A conduit fitting, shielded cable with vent tube and sealed screws for zero and span adjustment combine to make the Series 681 completely watertight.

Product Applications

Sanitary process applications
Food and beverage processing
Water processing
Dairy processing
Pharmaceutical processing

Models

Model	Description
681-02	Sanitary pressure transmitter, range 0-1 psi, 60 psi overpressure, 2″ sanitary clamp connection.
681-101	Sanitary pressure transmitter, range 0-300 psi, 1000 psi overpressure, 1-1/2″ sanitary clamp connection.
681-12	Sanitary pressure transmitter, range 0-2 psi, 100 psi overpressure, 2″ sanitary clamp connection.
681-22	Sanitary pressure transmitter, range 0-5 psi, 150 psi overpressure, 2″ sanitary clamp connection.
681-32	Sanitary pressure transmitter, range 0-10 psi, 150 psi overpressure, 2″ sanitary clamp connection.
681-42	Sanitary pressure transmitter, range 0-15 psi, 150 psi overpressure, 2″ sanitary clamp connection.
681-52	Sanitary pressure transmitter, range 0-30 psi, 150 psi overpressure, 2″ sanitary clamp connection.
681-62	Sanitary pressure transmitter, range 0-60 psi, 150 psi overpressure, 2″ sanitary clamp connection.
681-72	Sanitary pressure transmitter, range 0-100 psi, 150 psi overpressure, 2″ sanitary clamp connection.

Specifications

Service:: Compatible liquids and gases.
Wetted Parts:: 316L Stainless Steel.
Accuracy:: ±.20% FS (includes non-linearity, hysteresis and non-repeatability).
Temperature Limits:: -40 to 260°F (-40 to 125°C) 10 to 90% RH, non-condensing.
Pressure Limits:: See Catalog page.
Compensated Temperature Range:: 20 to 180°F (-7 to 80°C).
Thermal Effect:: Zero and span shift: ±2.0% FS/100°F (% FS/50°C).
Power Requirements:: 9-30 VDC.
Output Signal:: 4-20 mA, 2-wire.
Zero and Span Adjustment:: ±0.5 mA, non-interactive.
Response Time:: ≤10 ms.
Loop Resistance:: 800 ohms.
Electrical Connections:: 1/2″ conduit fitting and strain relief with 15 ft (4.5 m) cable.
Pressure Connection:: 2″ or 1-1/2″ Sanitary Clamp fitting male NPT .
Clamping Effect:: Zero and span shift: ±0.15% FS for ranges up to 30 psi; ±0.25% FS for ranges >30 psi.
Weight:: 8 oz (227 g)
Agency Approvals:: 3A, CE.

Features

Fully sealed to withstand Clean-in-Place and Sterilize-in-Place installations supports regulatory conditions for sanitary processes
Sanitary clamp fitting makes for easy installation
