Dwyer Series 783 3PDT Ice Cube Relays

Product Description

15 Amp, 3PDT Operation

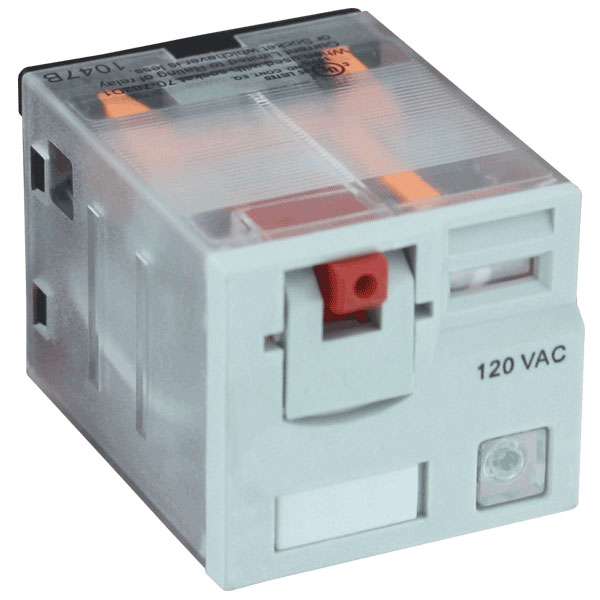

The Series 783 Electromechanical Ice Cube Relay is a full-featured 3PDT relay that can control up to 3 devices with a single trigger. It features a flag status indicator and a LED status lamp to let the user know when the relay is activated. In order to differentiate between AC and DC actuated models, the push-to-test button is color-coded. For testing the operation, a removable lockdown lever holds the test button in place. The clear plastic housing gives a view of the contacts, and there is a removable I.D. tag for labeling the circuit. The Series 783 can handle loads up to 15 amps.

Models

Specifications

Operating and Load Voltage Range:

24 to 120 VAC; 24 VDC.

Electrical Connection:

Electrical Connection.

Switching Operation:

3PDT.

Electrical Rating:

15 A @ 120 VAC
50/60 Hz; 12 A @ 277 VAC 50/60 Hz or
28 VDC.

Temperature Limits:

Storage: -40 to 185°F (-40 to 85°C); Operation: -40 to
131°F (-40 to 55°C).

Power Consumption:

1.5 VA; 1.4 W.

Cycle Life:

200,000 cycles (electrical);
10,000,000 cycles (mechanical).
Housing: Plastic polycarbonate.

Housing:

Plastic polycarbonate.

Weight:

2.1 oz (60 g).

Agency Approvals:

CE, CSA, RoHS,
AC Operated cUL, UL, cUR, UR.

Literature

Catalog Pages

Series 783 Catalog Page

Approvals

• CE Approval (Relay)
• CE Approval (Sockets)
• RoHS Approval (Jumper)
• RoHS Approval (Sockets)
• RoHS Approval (Relay)
• RoHS Approval (Modules)
• UL Approval_US
• UL Approval_US (components)
• UL Approval_CA
• UL Approval CA_(components)
• CSA Approval

Drawings

• Adobe Reader in format .PDF
• CAD Drawing in format .DWG

Accessories

	Model Number	Description

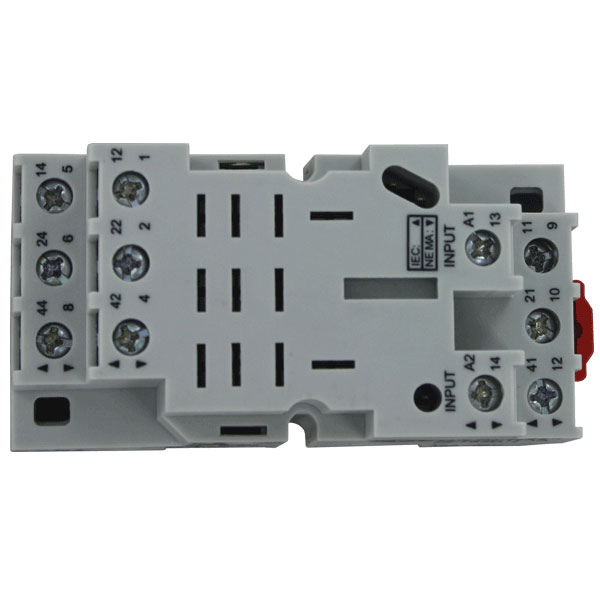

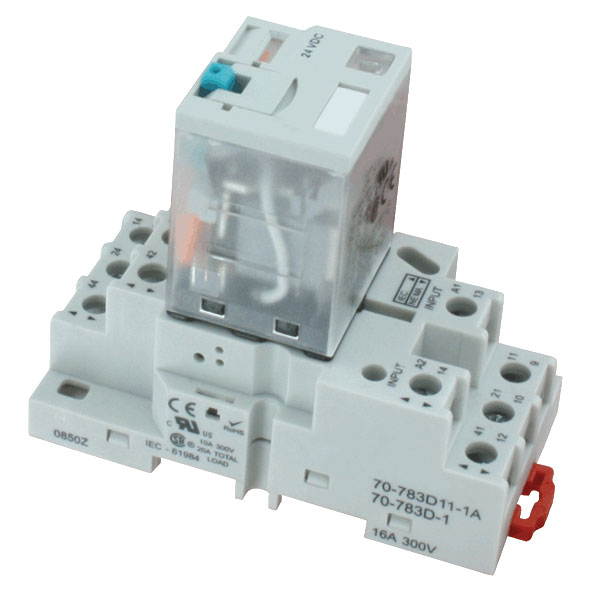

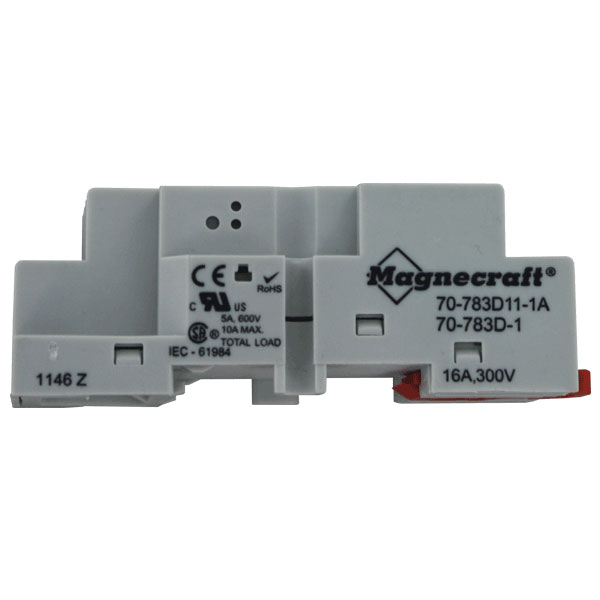

	70-783D11-1A	Socket for 783 Series relay
	70-ASMM-24	Protection Modules, MOV Suppressor, 24 VAC/VDC
	70-ASMM-120	Protection Modules, MOV Suppressor, 120 VAC/VDC
	70-ASMD-250	Protection modules, protection diode, 6 to 250 VDC
	16-750/788CBJ-1	Coil Bus jumpers
