Dwyer Series CFS2 Cable Float Switch

$ 15.15–$ 81.50

Clear selection

Accessories

SKU: N/A Categories: ,

Product Description

Mercury-Free, UL/CSA Approval Options

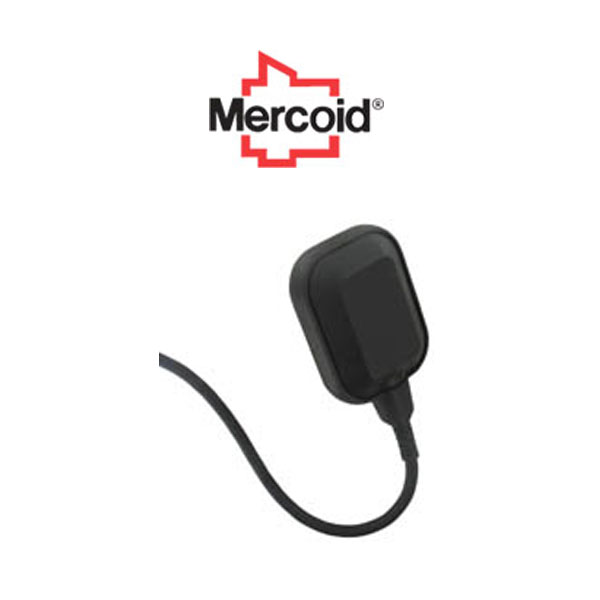

The Series CFS2 Cable Float Switch is a mechanically actuated floating switch intended to activate electrical components, usually pumps, to start and stop automatically. The CFS2 is perfect for simple level control of liquids for filling or draining reservoirs and tanks. Float switches such as the CFS2 are the most universally used for pump automation, due to their high reliability, economical pricing, and easy installation. Counterweights and cable hangers are available to suit a variety of mounting applications. Optional cables available include those with UL/CSA approval, higher chemical compatibility, high temperature durability, oil resistance, and drinking water suitability. Contact factory for piggyback plug option, gold contact switch option and cable length options ranging from 10 to 70 ft (3.04 to 21.34 m).

Models

Model Description
CFS2-CGDSN-20      SJOW 3X16 cable, SPST, NC, 1 HP 125V~ 16FLA 2 HP 250V~12FLA, 20 ft (6.10 m) cable
CFS2-CGDSN-30      SJOW 3X16 cable, SPST, NC, 1 HP 125V~ 16FLA 2 HP 250V~12FLA, 30 ft ( 9.14 m) cable
CFS2-CGDSN-40      SJOW 3X16 cable, SPST, NC, 1 HP 125V~ 16FLA 2 HP 250V~12FLA, 40 ft ( 12.19 m) cable
CFS2-CGDSN-50      SJOW 3X16 cable, SPST, NC, 1 HP 125V~ 16FLA 2 HP 250V~12FLA, 50 ft ( 15.24 m) cable
CFS2-CNBPN-20 PVC cable, SPST, NC, 10(8)A 250V~, 20 ft ( 6.10 m) cable
CFS2-CNBPN-30 PVC cable, SPST, NC, 10(8)A 250V~, 30 ft ( 9.14 m) cable
CFS2-CNBPN-40 PVC cable, SPST, NC, 10(8)A 250V~, 40 ft ( 12.19 m) cable
CFS2-CNBPN-50 PVC cable, SPST, NC, 10(8)A 250V~, 50 ft ( 15.24 m) cable
CFS2-DNBPN-10 PVC cable, SPDT, 10(8)A 250V~, 10 ft (3.05 m) cable
CFS2-DNBPN-100 PVC cable, SPDT, 10(8)A 250V~, 100 ft (30.48 m) cable
CFS2-DNBPN-15 PVC cable, SPDT, 10(8)A 250V~, 15 ft (4.57 m) cable
CFS2-DNBPN-20 PVC cable, SPDT, 10(8)A 250V~, 20 ft ( 6.10 m) cable
CFS2-DNBPN-30 PVC cable, SPDT, 10(8)A 250V~, 30 ft ( 9.14 m) cable
CFS2-DNBPN-40 PVC cable, SPDT, 10(8)A 250V~, 40 ft ( 12.19 m) cable
CFS2-DNBPN-50 PVC cable, SPDT, 10(8)A 250V~, 50 ft ( 15.24 m) cable
CFS2-DNBPN-60 PVC cable, SPDT, 10(8)A 250V~, 60 ft ( 18.29 m) cable
CFS2-DNBPN-7 PVC cable, SPDT, 10(8)A 250V~, 7 ft (2.13 m) cable
CFS2-DNBPN-80 PVC cable, SPDT, 10(8)A 250V~, 80 ft ( 24.38 m) cable
CFS2-OGDSN-20      SJOW 3X16 cable, SPST, NO, 1 HP 125V~ 16FLA 2 HP 250V~12FLA, 20 ft (6.10 m) cable
CFS2-OGDSN-30      SJOW 3X16 cable, SPST, NO, 1 HP 125V~ 16FLA 2 HP 250V~12FLA, 30 ft ( 9.14 m) cable
CFS2-OGDSN-40      SJOW 3X16 cable, SPST, NO, 1 HP 125V~ 16FLA 2 HP 250V~12FLA, 40 ft ( 12.19 m) cable
CFS2-OGDSN-50      SJOW 3X16 cable, SPST, NO, 1 HP 125V~ 16FLA 2 HP 250V~12FLA, 50 ft ( 15.24 m) cable
CFS2-ONBPN-20 PVC cable, SPST, NO, 10(8)A 250V~, 20 ft ( 6.10 m) cable
CFS2-ONBPN-30 PVC cable, SPST, NO, 10(8)A 250V~, 30 ft ( 9.14 m) cable
CFS2-ONBPN-40 PVC cable, SPST, NO, 10(8)A 250V~, 40 ft ( 12.19 m) cable
CFS2-ONBPN-50 PVC cable, SPST, NO, 10(8)A 250V~, 50 ft ( 15.24 m) cable

Specifications

Service:
Compatible liquids.
Wetted Materials:
Housing: Polypropylene; Cable: See model chart on catalog page.
Temperature Limits:
32 to 122°F (0 to 50°C).
Pressure Limits:
14.5 psi (1 bar).
Enclosure Rating:
IP68.
Switch Type:
See model chart on catalog page.
Electrical Rating:
>CFS2-XXBXX-XX
10 (8) A @ 250 VAC.
CFS2-XXDXX-XX
1 HP @ 125 VAC 16 FLA;
2 HP @ 250 VAC 12 FLA;
Shipping Weight:
>Housing: 5.43 oz (154 g);
Cable: 0.77 oz (21.27 g) per foot.
Agency Approvals:
CE, CSA, UL.

Literature

Manuals

Service Manual

Catalog Pages

Series CFS2 Catalog Page

Approvals

Drawings

Accessories

Model Number Description

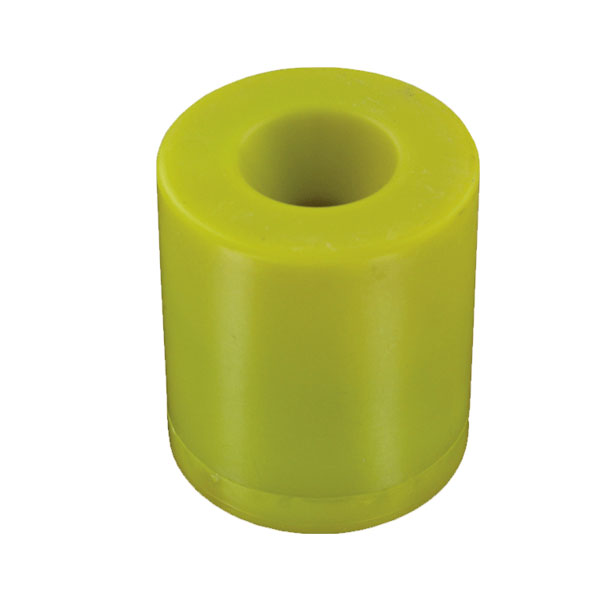

7.76 oz (220 g) counterweight A-457 7.76 oz (220 g) counterweight

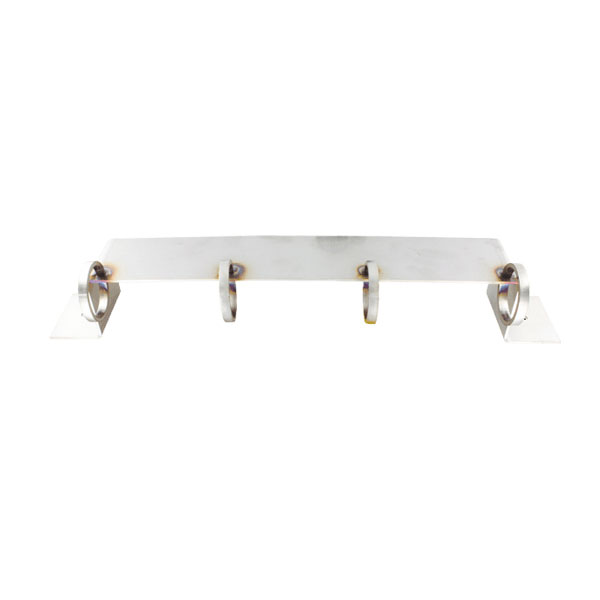

Cable hanger A-459 Cable hanger
(Dimensions:14.9″ x 4.1″ x 3.0″, 1.0 lb.)

Model Chart

EXAMPLE CFS2 O A P N 10 Series CFS2-ONAPN-10, Cable Float Switch 2, nomally open, no-ground wire, 10(4)A 250V, PVC, no piggy-back plug, 10 ft cable length
SERIES CFS2           Cable Float Switch 2
SWITCH TYPE   O
C
D		         Normally Open (SPST) Emptying Function
Normally Closed (SPST) Filling Function
NO/NC (SPDT)
GROUND WIRE     N
G		       No Ground Wire
Ground Wire
ELECTRICAL RATING       A
B
C
D

E

     10(4)A 250V
10(8)A 250V
10(4)A 250V – 10(8)A 250V
1HP 125V 16FLA
2HP 250V 12FLA (Only with Cable Materials)
0.1(0.05)A 250V/1-100 mA 5-24V
CABLE MATERIAL         P
N
S
T
W		   PVC Polyvinyl Chloride 05W-F
Neoprene Rubber Compoud EM2 Quality H07RN-F
Thermoset Compound CPE SJOW 3X16 AWG UL (O or C Switch Type only)
Rubber Compound EM7 Quality H07BN4-F
EPDM Ethylene Propylene ACS 07RN8-F
PIGGY BACK PLUG           N
P		 No-Piggy Back Plug
Piggy Back Plug
CABLE LENGTH           7
10
15
20
30
40
50
60
70
80
100		 7 Ft.
10 Ft.
15 Ft.
20 Ft.
30 Ft.
40 Ft.
50 Ft.
60 Ft.
70 Ft.
80 Ft.
100 Ft.
