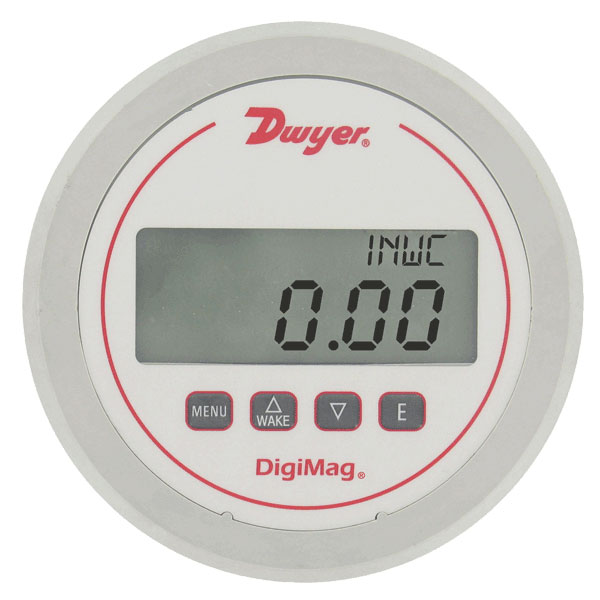

Dwyer Series DM-1000 DigiMag® Digital Differential Pressure and Flow Gages

Product Description

24 Volt or Battery Powered. Fits in Magnehelic® Gage Cut-Out

The DigiMag® Series DM-1000 Digital Differential Pressure and Flow Gages monitor the pressure of air and compatible gases just as its famous analog predecessor the Magnehelic® Differential Pressure Gage. All models are factory calibrated to specific ranges. The 4-digit LCD can display readings in common English and metric units so conversions are not necessary. The simplified four button operation reduces set up time and simplifies calibration with its digital push button zero and span.

The DigiMag® Digital Gages are more versatile than analog gages with their ability to be field-programmed to select pressure, air velocity or flow operation depending on model. The DigiMag® Digital Gages have an added feature for filter applications where a set point can be input where the display will blink when the filter is dirty, alerting the user that a maintenance action needs to occur.

Programming the Series DM-1000 is easy using the menu key to access 4 simplified menus which provide access to, depending on model: security level; engineering units; K-factor for use with various Pitot tubes and flow sensors circular or rectangular duct size for volumetric flow operation; filter set point; view peak and valley process readings; digital damping for smoothing erratic process applications; display update to conserve battery life; zero and span field calibration.

The Series DM-1000 DigiMag® Digital Differential Pressure and Air Flow Gages possess a full-scale accuracy of 1% on ranges down to 2 in w.c. and 2% accuracy down to the very low range of 1 inch to 0.25 in w.c. DigiMag® Digital Differential Pressure Gages offer power versatility by working with 9-24 VDC line power or simply 9V battery power. If using line power and connecting the 9V battery, the battery will act as a back-up if line power is lost or interrupted.

Product Applications

• Filter monitoring
• Air velocity or flow
• Blower vacuum monitoring
• Fan pressure indication
• Duct, room or building pressures
• Clean room positive pressure indication

Models

Specifications

Service:

Air and non-combustible, compatible gases.

Wetted Materials:

Consult factory.

Housing Materials:

Glass filled plastic.

Accuracy:

±1% FS including linearity, hysteresis and repeatability; ±2% FS for ranges 1″ w.c. and below.

Temperature Limits:

0 to 140°F (-18 to 60°C).

Compensated Temperature Limits:

32 to 122°F (0 to 50°C).

Long Term Stability:

±1% FS per year.

Thermal Effect:

±0.05% FS/°F typ.; ±0.10% FS/°F typ. for ranges 1″ w.c. and below.

Display:

4-digit LCD (Digits: 0.60″H x 0.33″W).

Display Update:

Selectable for 1 second, 10 minutes or update only from button push.

Pressure Limits:

Normal and bi-directional ranges 5 in w.c. and lower = 2 psi (13.7 kPa); Normal and bi-directional ranges 10 in w.c. and higher = 11 psi (75 kPa).

Selectable Engineering Units:

in w.c., psi, kPa, Pa, mm w.c., mBar, in Hg, mm Hg, FS (0-100% FS).

Power Requirements:

9V battery, included, user replaceable or external power supply 9-24 VDC.

Battery Service Life:

Battery life depending on the Display Update setting: 150 hours (typical) if Display Update = 1 second; 9 months (typical) if Display Update = 10 minutes; 1.5 years (typical) if Display Update is disabled. Battery may last up to four times longer when using lithium-based battery ULTRALIFE U9VL-J.

Current Consumption:

5 mA maximum.

Electrical Connections:

Removable terminal block for 16 to 26 AWG.

Electrical Entry:

Cable gland for 0.114 to 0.250″ (2.9 to 6.4 mm) diameter cable.

Process Connections:

1/8″ (3 mm) ID tubing.

Enclosure Rating:

NEMA 4X (IP66).

Weight:

1.18 lb (535 g).

Size:

5″ (127 mm) OD front face.

Agency Approvals:

CE.

Features

• Field programmed reduces installation time
• User selectable parameters for pressure, air velocity or flow permits same device for multiple applications
• Specialized filter set point for alerts when maintenance is due
• Security levels permit matches the correct access to right skill
• Power versatility works with 9-24 VDC or 9 V battery allows deployment in a variety of spaces wired or not

Literature

Manuals

• Instruction Manual (DM-1100)
• Instruction Manual (DM-1200)

Catalog Pages

Series DM-1000 Catalog Page

Approvals

CE Approval

Drawings

• CAD Drawing in format .DWG
• Adobe Reader in format .PDF
• 3D Drawing

Accessories

	Model Number	Description
	A-310A	3-way vent valve, plastic, 1/8″ NPT to 1/4″ metal tubing, 80 psi rating, replaces former Model A-310 (brass). 2.3″ x .8″ x .1″, .10 lb.
	A-480	Plastic static pressure tip.
	A-481	Installer kit, (includes 2 static pressure tips and PVC tubing).
	A-286	4-1/2″ Gage panel mounting flange
	A-489	4″ 303 SS straight static pressure tip with flange.
