Series-DPMP
DPM-24P

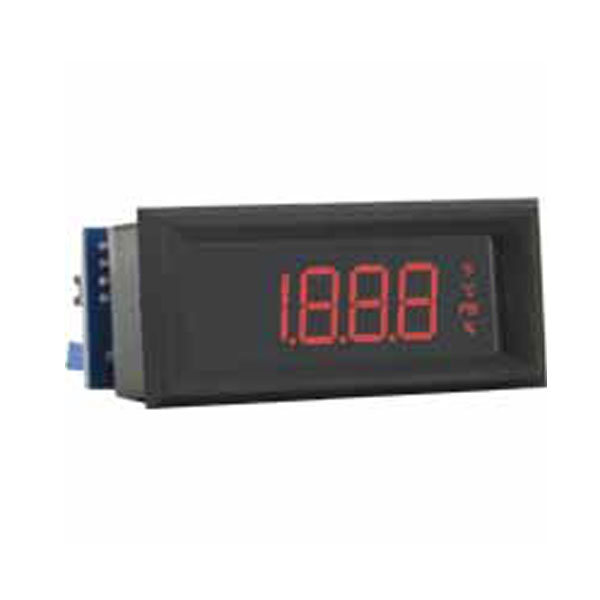

Series DPMP LCD Digital Panel Meter

$ 68.00

Clear selection

Accessories

SKU: N/A Categories: ,

Product Description

3-1/2 Digit, User Selectable Engineering Units, Panel Mount

THE SERIES DPMP LCD DIGITAL PANEL METER provides easy viewing on the 3-1/2 digit LCD display. The display segments are available in a choice of amber, red or green. The meter features user-selectable engineering units, adjustable zero and span and field-selectable decimal point position. The snap-in bezel mount eliminates mounting hardware for quick installation. A 24 VDC power supply is required for the operation of the backlight.

Product Applications

  • Display process values from pressure, humidity, temperature, voltage, current, watt, or power factor transmitters

Models

Model Description
DPMP-401 LCD digital process meter, loop powered 4 to 20 mA, amber segments.
DPMP-401P LCD Digital panel meter with power engineering units, loop powered 4 to 20 mA, amber segments.
DPMP-402 LCD digital process meter, loop powered 4 to 20 mA, green segments.
DPMP-402P LCD Digital panel meter with power engineering units, loop powered 4 to 20 mA, green segments.
DPMP-403 LCD digital process meter, loop powered 4 to 20 mA, red segments.
DPMP-403P LCD Digital panel meter with power engineering units, loop powered 4 to 20 mA, red segments.
DPMP-501 LCD digital panel meter, voltage powered 12VDC/24VDC, amber segments.
DPMP-501P LCD Digital panel meter with power engineering units, voltage powered 12 VDC/24 VDC, amber segments.
DPMP-502 LCD digital panel meter, voltage powered 12VDC/24VDC, green segments.
DPMP-502P LCD Digital panel meter with power engineering units, voltage powered 12 VDC/24 VDC, green segments.
DPMP-503 LCD digital panel meter, voltage powered 12VDC/24VDC, red segments.
DPMP-503P LCD Digital panel meter with power engineering units, voltage powered 12 VDC/24 VDC, red segments.

Specifications

Inputs:
DPMP-4XX(P): 4 to 20 mA;
DPMP-5XX(P): 0 to 200 mVDC, 0 to 5
VDC, or 0 to 10 VDC.
Input Impedance:
DPMP-4XX(P):
300Ω nominal; DPMP-5XX(P): 390Ω
nominal.
Accuracy:
±(0.1% FS + 2 count).
Power Supply:
DPMP-4XX(P): Powered by control loop; DPMP- 5XX(P): 12 VDC or 24 VDC.
Backlight Power Supply:
24 VDC @
35 mA typical.
Span and Zero:
Adjustable (±1999 Counts).
Display:
3-1/2 digits, 7 segments, 0.45″ (11.4 mm) H.
Decimal Points:
3-position, user selectable.
Engineering Units:
DPMP-XXX: °F, °C, %, psi; DPMP-XXXP: V, A, KW, PF.
Polarity:
Automatic, “-” displayed.
Operating Temperature:
32 to 122°F (0 to 50°C).
Storage Temperature:
-4 to 158°F (-20 to 70°C).
Mounting:
Snap-in bezel mount.
Connection:
Screw terminals.
Conversion Rate:
3 per second.
Warm-Up:
10 minutes typical.
Weight:
2 oz (56.7 g).
Agency Approvals:
RoHS.

Features

  • 3-1/2 digit with 0.45″ segments
  • Panel mount for quick installation
  • Colored segments available in black, red, amber, green, or blue
  • Jumper selectable engineering units and decimal point positions

Options

  • The display segments are available in a choice of amber, red or green.

LIterature

Manuals

Catalog Pages

Series DPMP Catalog Page

Approvals

RoHS Certificate of Compliance

Drawings

Accessories

Model Number Description
DPM-12P Regulated 120 VAC to 12 VDC power supply.
Regulated 120 VAC to 24 VDC power supply. DPM-24P Regulated 120 VAC to 24 VDC power supply.
