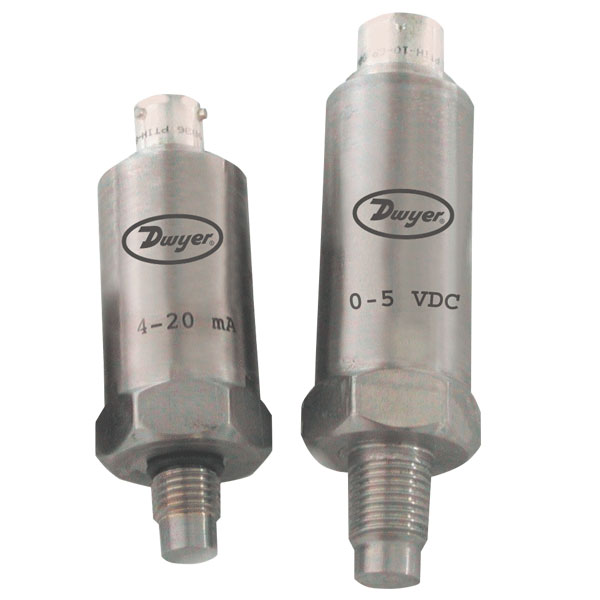

Dwyer Series FDT Flush Diaphragm Transmitter

$ 759.00

Clear selection

Range

Options

Accessories

SKU: N/A Categories: ,

Product Description

Non-liquid Filled, ±0.5% F.S.O. Accuracy, SS Wetted Parts

The Series FDT Flush Diaphragm Transmitter is designed for highly cyclical conditions. Flush sensor feature prevents any potential inaccuracies due to build-up or blockage which is a typical problem found in most non-flush transmitter sensors. Units have a non-oil filled sensor element that provides resistance to temperature fluctuations. Manufactured from a solid piece of steel, the sensing diaphragm can withstand the most abrasive/cyclical applications. Series FDT transmitters perform well in high cyclical environments with the presence of water-hammering or spiking.

Flush feature greatly reduces chance of leakage. Tough materials allow the unit to withstand harsh process conditions. Advanced manufacturing techniques, extreme environmental burn-in, and thorough residual stress relieving procedures ensure unit will maintain its high performance standard over time.

Product Applications

  • OEM
  • Hydraulic systems
  • Process systems

Specifications

Service:
Compatible liquids and gases, adhesives, slurries, materials that can harden, or where a pressure cavity is not desired.
Wetted Materials:
316 & 15-5 SST.
Accuracy:
±0.5% FS (includes non-linearity, hysteresis, and repeatability).
Stability:
±0.25% FS per year.
Temperature Limits:
-40 to 200°F (-40 to 93°C).
Compensated Temperature Limits:
0 to 170°F (-18 to 77°C).
Pressure Limit:
150% FS; Burst: 200% FS.
Thermal Effect:
±1.5% FSO over compensated range.
Power Requirements:
8-38 VDC.
Output Signal:
FDT-A: 4-20 mADC; FDT-V: 0-5 VDC.
Response Time:
<1mS.
Loop Resistance:
FDT-A: 0-1.5 ohms; FDT-V: ≤100 ohms.
Electrical Connections:
4 pin.
Process Connection:
7/16-20 UNF male flush diaphragm. Optional 1/4″ male NPT.
Enclosure Rating:
NEMA 4X (IP66).
Mounting Orientation:
Mount in any position.
Weight:
2 oz (57 g).
Agency Approval:
CE.

Features

  • Performs well in high cyclical environments with the presence of water-hammering or spiking for long service life

Literature

Manuals

Service Manual

Catalog Pages

Series FDT Catalog Page

Drawings

Accessories

Model Number Description
A-168 Mating connector for 4 pin M-12.
NISTCAL-PT1 NIST traceable calibration certificate for pressure transmitters.NOTE: EQUAL CERTS WILL BE CHARGED PER UNITS PURCHASED.

Model Chart

EXAMPLE FDT A 01 NPT Series FDT-A-01-NPT Flush Diaphragm Transmitter, 4-20 mA output, range 100 psi, with 1/4″ NPT.
SERIES FDT       Flush Diaphragm Transmitter
OUTPUT   A
V		     4-20 mA
0-5 VDC
RANGE     01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20		   100 psi
150 psi
200 psi
300 psi
400 psi
500 psi
600 psi
700 psi
800 psi
900 psi
1,000 psi
2,000 psi
3,000 psi
4,000 psi
5,000 psi
6,000 psi
7.000 psi
8,000 psi
9,000 psi
10,000 psi
OPTIONS       NPT
C08		 1/4″ NPT
0.25% Accuracy
