Dwyer Series FS-2 Vane Flow Switch

$ 47.00

Categories: Flow, Flow Switches

Description
Models
Specifications
Features
Literature
Approvals
Drawings
Accessories
FAQ

Product Description

Low Cost, Field Adjustable Set Point and Paddle

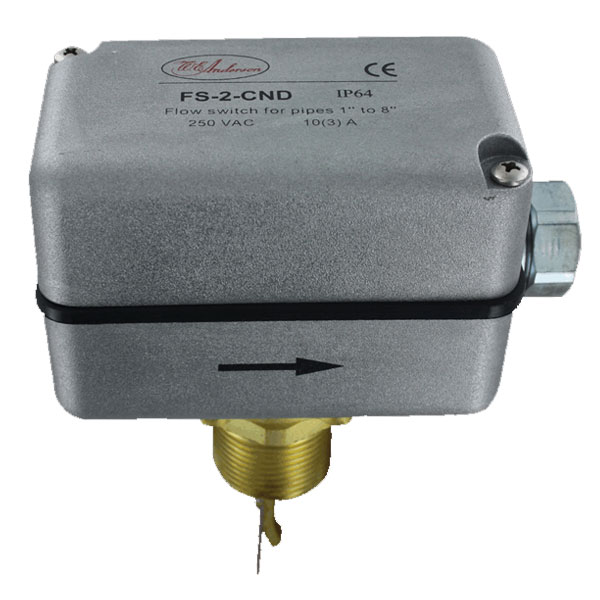

The Series FS-2 Vane Flow Switch offers an economical flow proving solution. Custom set points tailored for the application are enabled by field adjustable vane layers and a set point adjustment screw. The FS-2 features an aluminum weatherproof housing for outdoor installation. Paddles are adjustable to fit 1″ to 8″ size pipe. FS-2 is ideal for use in “flow or no flow” applications in cold and hot water systems.

Product Application

Perfect for proving flow in boilers, hot water heaters, and chillers.

Models

Model	Description
FS-2	Paddle flow switch, 1″ male NPT.
FS-2-BSPT	Paddle flow switch, 1″ male BSPT.
FS-2-CND	Paddle flow switch, NPT process connection, conduit electrical connection
FS-2-W8	Paddle flow switch, 1″ male NPT connection with 8 ft leads

Specifications

Service:: Compatible liquids.
Wetted Materials:: Bellow: Tin-bronze; Vane: Stainless Steel; Body: Forged brass.
Temperature Limits:: 230°F (110°C).
Pressure Limits:: 145 psig (10 bar).
Enclosure Rating:: NEMA 4 (IP64).
Switch Type:: SPDT snap switch.
Electrical Rating:: 10 A res, 3 A ind @ 250 VAC.
Electrical Connection:: Cable gland with attached wire leads.
Process Connection:: 1″ male NPT or BSPT.
Mounting Orientation:: Switch must be installed vertically on horizontal pipe runs.
Set Point Adjustment:: Four vane combinations and an adjustment screw.
Enclosure:: Die-cast aluminum alloy.
Weight:: 28.22 oz (0.8 kg).
Agency Approvals:: CE.

Features

Field adjustable vane
Field adjustable set point
Weatherproof construction

Literature

Manuals

Instruction Manual

Catalog Pages

Series FS-2 Catalog Page

Approvals

CE Approval

Drawings

Accessories

	Model Number	Description
	FS-2-VANE	Replacement vane assembly

FAQ

Question

What does actuation and de-actuation mean?

Answer

Actuation means that the flow rate has reached a point where the microswitch trips or the contacts of the microswitch change state. De-actuation means that the flow rate has decreased to a point where the microswitch returns to its normal state.
