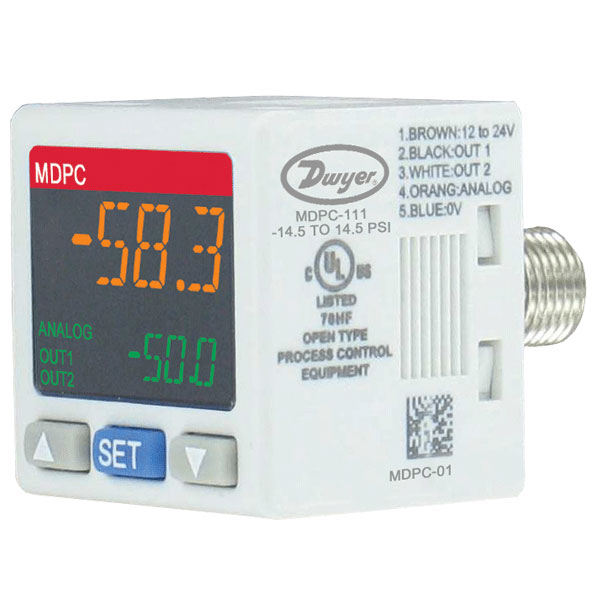

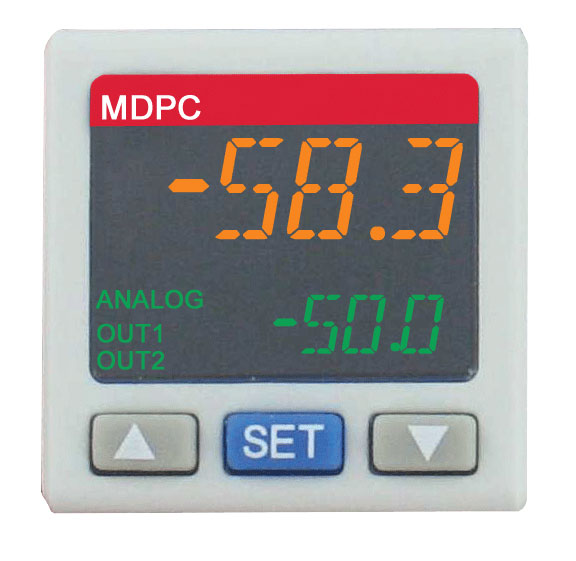

Dwyer Series MDPC Mini Digital Pressure Controller

$ 79.00

Clear selection

Option

Accessories

SKU: N/A Categories: ,

Product Description

Small, Lightweight, 6 Selectable Pressure Units

The Series MDPC is a slim, gas pressure sensor that is small in size and light in weight. This pressure controller supports many installation methods and features high measurement accuracy. This small controller yields excellent stability, high shock and vibration resistance. The MDPC also provides good over-load capacity and heat resistance. It can be utilized in many industries such as: high-tech electronics, general processing, food packaging and automatic assembly. The MDPC features 6 user selectable pressure units and a large, LED 3-color display with selectable color options that allow for easy reading. Changing units is simple, and by using the included unit stickers, the pressure unit displayed becomes very clear. The fast parameter copy function makes copying parameters to other MDPC pressure controllers effortless. The key lock mode also prevents any unnecessary changes to the parameters, which can have an effect on the operation. Another characteristic of this multi-talented pressure controller is its ability to detect both positive and negative pressure. The MDPC is available in NPN, PNP, analog voltage or current output control modes.

Models

Model Description
MDPC-111 Pressure controller, range -14.5 psi to 14.5 psi, NPN output, 4 to 20 mA, outer connection 1/8″ PT, inner connection M5.
MDPC-112 Pressure controller, range -14.5 psi to 14.5 psi, NPN output, 4 to 20 mA, outer connection 1/8″ NPT, inner connection M5.
MDPC-121 Pressure controller, range -14.5 psi to 14.5 psi, NPN output, 1 to 5 V, outer connection 1/8″ PT, inner connection M5.
MDPC-122 Pressure controller, range -14.5 psi to 14.5 psi, NPN output, 1 to 5 V, outer connection 1/8″ NPT, inner connection M5.
MDPC-131 Pressure controller, range -14.5 psi to 14.5 psi, PNP output, 4 to 20 mA, outer connection 1/8″ PT, inner connection M5.
MDPC-132 Pressure controller, range -14.5 psi to 14.5 psi, PNP output, 4 to 20 mA, outer connection 1/8″ NPT, inner connection M5.
MDPC-141 Pressure controller, range -14.5 psi to 14.5 psi, PNP output, 1 to 5 V, outer connection 1/8″ PT, inner connection M5.
MDPC-142 Pressure controller, range -14.5 psi to 14.5 psi, PNP output, 1 to 5 V, outer connection 1/8″ NPT, inner connection M5.
MDPC-211 Pressure controller, range -14.5 psi to 145 psi, NPN output, 4 to 20 mA, outer connection 1/8″ PT, inner connection M5.
MDPC-212 Pressure controller, range -14.5 psi to 145 psi, NPN output, 4 to 20 mA, outer connection 1/8″ NPT, inner connection M5.
MDPC-221 Pressure controller, range -14.5 psi to 145 psi, NPN output, 1 to 5 V, outer connection 1/8″ PT, inner connection M5.
MDPC-222 Pressure controller, range -14.5 psi to 145 psi, NPN output, 1 to 5 V, outer connection 1/8″ NPT, inner connection M5.
MDPC-231 Pressure controller, range -14.5 psi to 145 psi, PNP output, 4 to 20 mA, outer connection 1/8″ PT, inner connection M5.
MDPC-232 Pressure controller, range -14.5 psi to 145 psi, PNP output, 4 to 20 mA, outer connection 1/8″ NPT, inner connection M5.
MDPC-241 Pressure controller, range -14.5 psi to 145 psi, PNP output, 1 to 5 V, outer connection 1/8″ PT, inner connection M5.
MDPC-242 Pressure controller, range -14.5 psi to 145 psi, PNP output, 1 to 5 V, outer connection 1/8″ NPT, inner connection M5.

Specifications

Service:
Non-corrosive gas.
Wetted Materials:
Brass with nickel plating.
Housing Materials:
Polycarbonate, polybutylene terephthalate.
Accuracy:
±3% of full range.
Pressure Limits:
MDPC-1: 29 psi (200 kPa); MDPC-2: 217.6 psi (1500 kPa).
Display:
2-line LCD display, 4 digits for measured value and 3.5 digits for setup display.
Power Requirements:
12 to 24 VDC ±10% no isolations.
Power Consumption:
40 mA max.; Current output type 60 mA max.
Process Connections:
1/8″ NPT, inner connection M5, for 1/8″ PT contact factory.
Weight:
1.3 oz (36.85 g).
Agency Approvals:
CE: MDPC-121, MDPC-122, UL.

SWITCH SPECIFICATIONS:
Switch Type:
NPN or PNP
Electrical Rating:
100 mA @ 30 VDC.
Response Time:
Programmable to 2ms, 4ms, 10ms, 30ms, 50ms, 100ms, 250ms, 500ms, 1000ms or 5000ms.
Display Cycle:
Programmable to 100ms, 250ms, 500ms or 1000ms.

TRANSMITTER SPECIFICATIONS:
Output Signal:
1 to 5 V: Minimum output load resistance 1000 Ω; 4 to 20 mA: Maximum output load resistance 400 Ω.
Zero and Span Adjustments:
Menu scalable within the range.

Features

  • Energy saving mode
  • 3-color display with selectable color options: green, red and orange
  • Analog output function
  • Parameter copy function
  • Unit conversion function: inHg, psi, kPa, mmHg, kg/cm² and bar
  • 10 sets of user selectable output response times
  • Key lock function
  • Fast zero reset

Literature

Manuals

IOM

Catalog Pages

IOM

Approvals

Drawings

Accessories

Model Number Description
A-152 Bracket installation kit.
A-153 Panel installation kit.
NISTCAL-PT1 NIST traceable calibration certificate for pressure transmitters.NOTE: EQUAL CERTS WILL BE CHARGED PER UNITS PURCHASED.

Related Products
