Dwyer Series PBLT2 Submersible Level Transmitter

$ 415.45–$ 629.95

SKU: N/A Categories: Level, Level Transmitters

Description
Models
Specifications
Features
Options
Literature
Approvals
Drawings
Accessories
Model Chart
FAQ

Product Description

Perfect for Sludge and Slurries, Lightning Protected, Intrinsically Safe

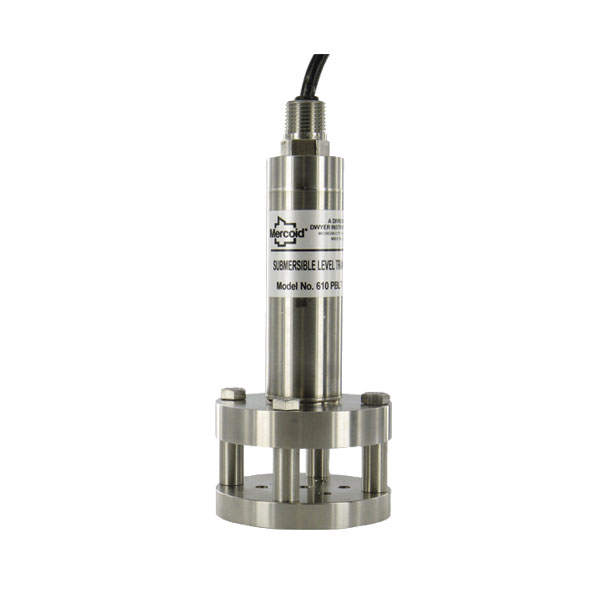

PBLT2 and PBLTX Submersible Level Transmitters are manufactured for years of trouble free service in the harshest applications. Both measure the height of liquid above the position in the tank referenced to atmospheric pressure. The transmitter consists of a piezoresistive sensing element, encased in a 316 SS housing. Perfect for wastewater and slurry applications with features to protect the unit from these demanding applications. Large diameter 316 SS diaphragm seal is non-clogging and damage resistant to floating solids.

The PBLT2 incorporates lightning and surge protection utilizing dual arrestor technology, grounded to case, eliminating both power supply surges and lightning ground strike transients (surge protection is not guaranteed and is not covered by warranty). The PBLTX is UL approved intrinsically safe for use in hazardous locations when used with proper barrier.

Units come equipped with a 270-pound tensile strength shielded and vented cable. Ventilation tube in the cable automatically compensates for changes in atmospheric pressure above the tank. The vent is protected with a maintenance free filter eliminating particulate or water droplets from entering the transducer.

Product Applications

Wastewater
Sludge pits, clarifiers, digesters
Alum tanks
Chemical storage tanks
Oil tanks
Lime slurry
Sumps
Reservoirs

Models

Model	Description
PBLT2-10-100-PU	Submersible level transmitter, range 10 psi (23.09 ft wc) [7.04 m wc], 100 ft (30.5 m) polyurethane cable.
PBLT2-10-40-PU	Submersible level transmitter, range 10 psi (23.09 ft wc) [7.04 m wc], 40 ft (12.2 m) polyurethane cable.
PBLT2-10-60-PU	Submersible level transmitter, range 10 psi (23.09 ft wc) [7.04 m wc], 60 ft (18.3 m) polyurethane cable.
PBLT2-10-70-PU	Submersible level transmitter, range 10 psi (23.09 ft wc) [7.04 m wc], 70 ft (21.3 m) polyurethane cable.
PBLT2-10-80-PU	Submersible level transmitter, range 10 psi (23.09 ft wc) [7.04 m wc], 80 ft (24.4 m) polyurethane cable.
PBLT2-100-40-PU	Submersible level transmitter, range 100 psi (230.67 ft wc) [70.32 m wc], 40 ft (12.2 m) polyurethane cable.
PBLT2-15-100-PU	Submersible level transmitter, range 15 psi (34.63 ft wc) [10.56 m wc], 100 ft (30.5 m) polyurethane cable.
PBLT2-15-150-PU	Submersible level transmitter, range 15 psi (34.63 ft wc) [10.56 m wc], 150 ft (45.7 m) polyurethane cable.
PBLT2-15-60-PU	Submersible level transmitter, range 15 psi (34.63 ft wc) [10.56 m wc], 60 ft (18.3 m) polyurethane cable.
PBLT2-15-80-PU	Submersible level transmitter, range 15 psi (34.63 ft wc) [10.56 m wc], 80 ft (24.4 m) polyurethane cable.
PBLT2-20-100-PU	Submersible level transmitter, range 20 psi (46.18 ft wc) [14.08 m wc], 100 ft (30.5 m) polyurethane cable.
PBLT2-20-60-PU	Submersible level transmitter, range 20 psi (46.18 ft wc) [14.08 m wc], 60 ft (18.3 m) polyurethane cable.
PBLT2-25-100-PU	Submersible level transmitter, range 25 psi (57.70 ft wc) [17.58 m wc], 100 ft (30.5 m) polyurethane cable.
PBLT2-3.5M-20M-PU	Submersible level transmitter, range 3.5m wc, 20m polyurethane cable.
PBLT2-3.5M-5M-PU	Submersible level transmitter, range 3.5m wc, 5m polyurethane cable.
PBLT2-5-100-PU	Submersible level transmitter, range 5 psi (11.54 ft wc) [3.52 m wc], 100 ft (30.5 m) polyurethane cable.
PBLT2-5-40-PU	Submersible level transmitter, range 5 psi (11.54 ft wc) [3.52 m wc], 40 ft (12.2 m) polyurethane cable.
PBLT2-5-50-PU	Submersible level transmitter, range 5 psi (11.54 ft wc) [3.52 m wc], 50 ft (15.2 m) polyurethane cable.
PBLT2-5-60-PU	Submersible level transmitter, range 5 psi (11.54 ft wc) [3.52 m wc], 60 ft (18.3 m) polyurethane cable.
PBLT2-5-65-PU	Submersible level transmitter, range 5 psi (11.54 ft wc) [3.52 m wc], 65 ft (19.8 m) polyurethane cable.
PBLT2-5-70-PU	Submersible level transmitter, range 5 psi (11.54 ft wc) [3.52 m wc], 70 ft (21.3 m) polyurethane cable.

Specifications

Service:: Compatible liquids.
Wetted Materials:: 316 SS, 316L SS, Epoxy, cable: ETFE or polyurethane.
Accuracy:: ±0.25% full scale (includes linearity, hysteresis, and repeatability).
Temperature Limit:: PBLT2: 0 to 200°F (-18 to 93°C), PBLTX: 0 to 176°F (-18 to 80°C).
Compensated Temperature Range:: PBLT2: 0 to 180°F (-18 to 82°C), PBLTX: 0 to 176°F (-18 to 80°C).
Thermal Effect:: ±0.02% FS/°F.
Pressure Limit:: 2X full scale.
Power Requirement:: PBLT2: 13 to 30 VDC, PBLTX: 10 to 28 VDC.
Output Signal:: 4 to 20 mA DC, two wire.
Response Time:: 50 msec.
Loop Resistance:: 900 Ω.
Electrical Connection:: Wire pigtail.
Mounting Orientation:: Suspended in tank below level being measured.
Weight:: 4.3 lb (2.0 kg).
Electrical Protection:: PBLT2: Lightning and surge protection, PBLTX: none.
Agency Approvals:: PBLT2: None, PBLTX: CE, cULus intrinsically safe for Class I, Div. 1, Groups A, B, C, D; Class II, Div. 1, Groups E, F, G; Class III, Div. 1. (According to control drawing 01-700797-00).

Features

Excellent chemical compatibility with 316 construction and ETFE cable
Lightning and surge protection on PBLT2 models
Maintenance free vent filter
UL approved intrinsically safe on PBLTX models
Large diameter, non-clogging, damage resistant, 316 SS diaphragm seal

Options

-Intrinsically Safe Approval – Change model number from PBLT2 to PBLTX.
-Custom Ranges or Cable Lengths.

Literature

Manuals

PBLT2
PBLTX

Catalog Pages

Series PBLT2 & PBLTX Catalog Page

Approvals

Drawings

Accessories

	Model Number	Description
	MTL5041	Intrinsically safe galvanic barrier.
	MTL7706	Intrinsically safe zener barrier.
	A-297	Dessicant Vent Filter for submersible level transmitters
	A-625	Lift Loop/Hanger for submersible level transmitters

Model Chart

EXAMPLE	PBLT2	60	500	LSP	Series PBLT2-60-500-LSP Lightning and Surge Protected Submersible Level Transmitter, 60 psi sensor, 500′ cable length, with 2 year lightning surge protection guarantee.
SERIES	PBLT2 PBLTX				Lightning & Surge Protected Submersible Level Transmitter Intrinsically Safe Submersible Level Transmitter
SENSOR		5 7.796 10 12.992 15 20 25 30 60 100 1.2M 3.5M 5M 10M 100M			5 psi Sensor 7.796 psi Sensor (18′ w.c.) (available on PBLT2 only) 10 psi Sensor 12.992 psi Sensor (30′ w.c.) 15 psi Sensor 20 psi Sensor 25 psi Sensor 30 psi Sensor 60 psi Sensor (available on PBLT2 only) 100 psi Sensor (available on PBLT2 only) 1.2 meters (available on PBLT2 only) 3.5 meters (available on PBLT2 only) 5 meters(available on PBLT2 only) 10 meters(available on PBLT2 only) 100 meters(available on PBLT2 only)
CABLE LENGTH			X XM		Cable Length in Feet (minimum: 10′; maximum: 2000′) Cable Length in Meters (minimum 1m; maximum 600m)
OPTIONS				PU 2YR LSP	Polyurethane Cables (ETFE is standard) 2 Year Warranty 2 Year Lightning Surge Protection Guarantee (available on PBLT2 only)

FAQ

Question

Is it safe to soak an MBLT level transmitter in vinegar or muratic acid to remove accumulated scale deposits?

Answer

Feel free to use whatever cleaning chemicals you like to remove accumulated scale deposits as long as the chemicals are compatible with the unit’s wetted materials as specified in our published literature.

Related

Series PBLT2 & PBLTX

Series MBLT

Series FBLT

Series SBLT2 & SBLTX

Question

Our client has an MBLT pressure transmitter that appears to be malfunctioning due to scale buildup. The transmitter is installed to measure leachate level in a one-year old municipal sanitary landfill. What can we use to remove scale from the transmitter without damaging the transmitter?

Answer

If the issue is due to build-up which consequently plugs the small sensing holes, you might take a look at our PBLT2 or FBLT series. They are both more rugged and designed for sludge and slurries, whereas the MBLT and SBLT2 are better suited for cleaner applications such as ground water and wells.

Related
