$ 42.00–$ 90.00
Optional Relay Output, Solid or Split Core Case

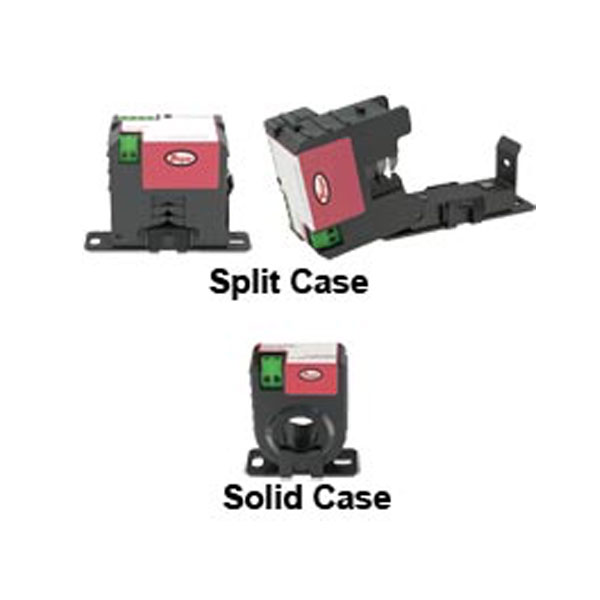

The Series SCS Low Cost Current Switches are ideal for monitoring whether fans, pumps, or motors are operating. The current flowing through the core of the device powers the circuit without an external power supply. All models have a built in solid state output and are easy to install. Optional LED’s and 10 Amp relay modules are available. The Series SCS is available in both Split and Solid Core configurations.
| Model | Description |
|---|---|
| SCS-111100 | Solid core current switch with adjustable set point, amperage range 1 to 135 A. |
| SCS-111100-R | Solid core current switch, adjustable set point, with attached control relay, amperage range 1 to 135 A. |
| SCS-120025 | Solid core current switch with fixed set point at 0.25A, amperage range .25 to 200 A. |
| SCS-211125 | Split core current switch with adjustable set point, amperage range 1.25 to 135 A. |
| SCS-211125-R | Split core current switch, amperage range 1.25 to 135 A. adjustable set point, with attached control relay. |
| SCS-220015 | Split core current switch with fixed set point at 0.15A, amperage range .15 to 200 A. |
| SCS-220150 | Split core current switch with fixed set point at 1.5A, amperage range 1.5 to 200 A. |
| SCS-220150-R | Split core current switch, amperage rating 1.5 to 200 A, fixed set point at 1.5A, with attached control relay. |
