Dwyer Series ULT Ultrasonic Level Transmitter

$ 911.00–$ 1,088.00

Clear selection
SKU: N/A Categories: ,

Product Description

Explosion-proof, Mapping Software

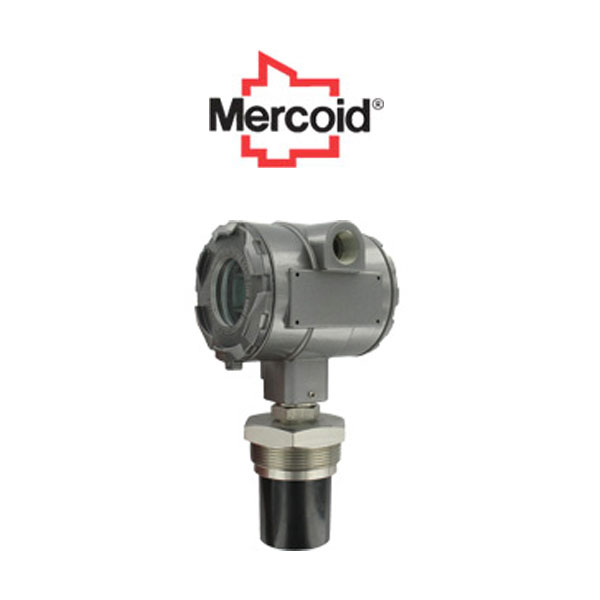

Series ULT Ultrasonic Level Transmitter provides reliable, accurate, non-contact measurement of liquid levels. Ultrasonic non-contact technology offers no moving parts to wear, jam, corrode, or get coated like contact technologies. Mapping software makes effective measuring surface only a 3″ diameter column. No concerns with ladders, pipes, or other tank intrusions in the remaining sound cone. Unit is FM approved explosion-proof making it ideal for use in hazardous locations. The ULT features easy programming with 6 digit LCD display and simple menu structure. Output range is adjustable with choices of inputting tank dimensions or just fill and empty the tank while calibrating and it automatically scales to levels it senses. Window cover allows early viewing of display. Fail-safe output options and diagnostic capabilities makes the ULT a good choice for critical applications.

Models

Model Description
ULT-11 Ultrasonic level transmitter, 7.5 m (24.6′) range, explosion-proof, 2″ NPT male process connection, 1/2″ NPT conduit connection.
ULT-12 Ultrasonic level transmitter, 7.5 m (24.6′) range, explosion-proof, 2″ BSPT male process connection, M20 conduit connection.
ULT-21 Ultrasonic level transmitter, 10 m (32.8′) range, explosion-proof, 2″ NPT male process connection, 1/2″ NPT conduit connection.
ULT-22 Ultrasonic level transmitter, 10 m (32.8′) range, explosion-proof, 2″ BSPT male process connection, M20 conduit connection.

Specifications

Service:
Compatible fluids. Not for use with powder and bulk solids.
Wetted Materials:
Sensor: PVDF; Process Connection: 303 SS; O-ring: fluoroelastomer.
Ranges:
24.6′ (7.5 m), 32.8′ (10 m).
Accuracy:
±0.2% of maximum range.
Resolution:
0.079″ (2 mm).
Blind Zone:
Under 8″ (20 cm).
Beam Width:
3″ (7.6 cm) diameter.
Temperature Limits:
Ambient: -40 to 140°F (-40 to 60°C), Process: -4 to 140°F (-20 to 60°C).
Temperature Compensation:
-40 to 140°F (-40 to 60°C).
Pressure Limits:
30 psi (2 bar) up to 25°C (77°C). Above 25°C (77°F), rating decreases 1.667 psi per 1°C increase. See Catalog page.
Power Requirement:
18 to 28 VDC (2 wire).
Output Signal:
4 to 20 mA or 20 to 4 mA (Two-wire).
Max. Loop Resistance:
250 Ohms at 24 VDC.
Electrical Connections:
Screw terminal.
Conduit Connection:
1/2″ NPT female (two) or optional M20.
Process Connection:
2″ NPT male or optional BSPT.
Enclosure Rating:
Weatherproof meets NEMA 4X, explosion-proof rated Class I, Div. 1, Groups B, C, D; Class II/III, Div. 1, Groups E, F, G.
Mounting Orientation:
Vertical.
Failsafe:
On lost echo after 30 seconds, user selectable to 4, 20, 21, 22 mA or last signal.
Memory:
Non-volatile.
Display:
6 character LCD.
Units:
In, cm, ft, m, percent.
Weight:
4.0 lb (1.8 kg).
Agency Approvals:
CE, FM.

Literature

Manuals

IOM

Catalog Pages

Series ULT Catalog Page

Approvals

Drawings

Model Chart

EXAMPLE ULT 1 1 M20 Series ULT-11-M20 Ultrasonic Level Transmitter, range 24.6 ft. (7.5 m), 2″ NPT connection, with M20 conduit connection.
SERIES ULT       Ultrasonic Level Transmitter
RANGE   1
2		     24.6 ft. (7.5 m)
32.8 ft. (10 m)
PROCESS CONNECTION     1
2		   2″ NPT
2″ BSPT
OPTIONS       M20 M20 Conduit Connection
