Series-O-4

Dwyer Series O-4 Outside Air Temperature Sensor

$ 10.50–$ 13.50

Clear selection
SKU: N/A Categories: ,

Product Description

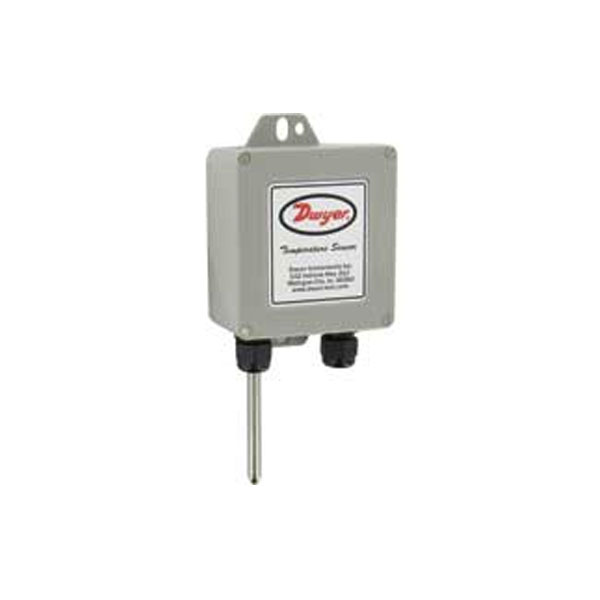

The Series O-4 Outside Air Temperature Sensors are great for monitoring ambient air temperatures in outdoor applications. The temperature sensors are mounted in a NEMA 4X enclosure with integral mounting tabs. The mounting tabs can be used to surface or suspension mount the temperature sensors. The removable terminal block makes installation easy. The Series O-4 can be used to measure outside air temperatures in building automation systems or room temperatures inside agricultural ventilation houses.

For models with resistive thermistors or RTD outputs, please click here for temperature to resistance lookup tables.

Models

Model Description
O-45 Outside air temperature sensor, 10K Ohm thermistor.
O-4A Outside air temperature sensor, 10K Ohm thermistor, Type III.
O-4B Outside air temperature sensor, 10K Ohm thermistor, Type II.
O-4C Outside air temperature sensor, 3K Ohm.
O-4D Outside air temperature sensor, Pt100 Ohm RTD.
O-4E Outside air temperature sensor, Pt1000 Ohm RTD.
O-4F Outside air temperature sensor, 20K Ohm.

Specifications

Accuracy:
Thermistor temperature sensor: ±0.22°C @ 25°C (±0.4°F @ 77°F);

RTD temperature sensor: DIN class B: ±0.3°C @ 0°C (±0.54°F @ 32°F).
Operating Temperature:
-40 to 250°F.
Probe Diameter:
0.235″ (5.97 mm).
Probe Length:
3.5″.
Probe Material:
304 SS.
Temperature Sensor:
Curves A,B,C; Thermistor; Curves D,E; Platinum RTD DIN 385. (See R-T Lookup Table).
Mounting:
Suspension or surface.
Enclosure:
NEMA 4X.
Weight:
3 oz (85 g).

Literature

Catalog Pages

Series O-4 Catalog Page

Drawings
